Explore our top-tier wall-mount, desktop, and universal switching power supply units engineered with low ripple noise, multi-stage over-voltage protection, and global safety standard clearances.
Navigating efficiency mandates, power density challenges, and regional safety standard harmonization across worldwide commercial and industrial sectors.
In the modern electrical engineering ecosystem, the demand for high-reliability AC Switching Power Supply (SMPS) units has expanded exponentially beyond conventional consumer electronics. From automated industrial robotics, AIoT edge computing gateways, and telecom infrastructure to medical diagnostics and smart home appliances, power conversion efficiency dictates system stability, device longevity, and operational thermal limits. As global regulations like the U.S. Department of Energy (DoE) Level VI and European Union ErP Tier 2 standards enforce stringent active-mode efficiency and no-load standby power consumption limits (under 0.075W to 0.1W), OEM procurement leaders and hardware architects must carefully evaluate supply partners based on advanced topology utilization, component quality, and localized compliance capabilities.
Legacy linear power supplies, constrained by heavy iron-core transformers and efficiency figures rarely exceeding 50–60%, have been almost universally replaced by high-frequency AC switching topologies operating between 65 kHz and several megahertz. Modern switching power supply design leverages pulse-width modulation (PWM) or pulse-frequency modulation (PFM) control ICs, high-voltage silicon MOSFETs or Gallium Nitride (GaN) HEMTs, and low-loss planar transformers. This structural evolution permits power densities exceeding 15 to 25 Watts per cubic inch while retaining operating temperatures well within safety limits over extended industrial ambient ranges (-20°C to +60°C).
A comprehensive architectural evaluation of power topologies engineered across our wall-mount, desktop, and open-frame switching power supply platforms.
Ideal for 5W to 65W wall-mount and compact desktop adapters. By detecting primary switch drain-voltage valleys, switching losses are dramatically reduced, achieving up to 89–91% efficiency while minimizing Electromagnetic Interference (EMI) emissions in EN 55032 Class B spectrums.
Utilized in high-power-density USB PD 3.0/3.1 chargers and ultra-compact 45W–120W power bricks. Recycles transformer leakage energy into output power, eliminating traditional snubber losses and permitting operating switching frequencies above 200kHz.
Employed in high-wattage desktop and industrial open-frame supplies (90W–350W). Features Zero Voltage Switching (ZVS) on primary switches and Zero Current Switching (ZCS) on synchronous rectification diodes, delivering peak efficiencies exceeding 93% with active power factor correction (PFC > 0.95).
| Power Category | Primary Topology | Efficiency Class | Key Protection Features | Primary Application Areas |
|---|---|---|---|---|
| 5W – 24W Wall Mount | Fixed Frequency PWM Flyback | DoE Level VI / ErP Tier 2 | OVP, OCP, Auto-Recovery SCP | Consumer IoT, Set-Top Boxes, Smart IP Cameras |
| 24W – 65W Desktop | Quasi-Resonant (QR) Flyback | CoC Tier 2 / Energy Star 8.0 | OVP, OCP, OTP, Overload Protection | POS Terminals, Networking Routers, LED Displays |
| 65W – 120W PD / Industrial | Active Clamp Flyback (GaN) | Ultra-High Density (>92%) | Latch-Off OVP, Precision OCP, Thermal Cut-off | Laptops, Medical Diagnostics, Industrial Automation |
| 120W – 350W High Power | PFC + LLC Resonant Converter | 80 PLUS Gold/Platinum Equivalent | Dual Stage OVP, Short Circuit Latch, Inrush Limiter | 3D Printers, Laser Equipment, High-End Audio/Video |
How vertical integration, rigorous ISO 9001 quality gates, and dual production bases deliver unmatched cost efficiency and batch consistency.
As a leading Shenzhen-based AC switching power supply manufacturer (Shenzhen FuYun / RUIYU Technology Co., Ltd.) established in 2010, our engineering and production footprint bridges raw component sourcing to complete turnkey power supply delivery. Operating across state-of-the-art facilities totaling over 50,000 square meters in Shenzhen and inland production facilities in Shaanxi, our manufacturing ecosystem buffers international clients against supply chain vulnerabilities, lead time volatility, and inflationary pressure.
By manufacturing transformer cores, winding high-frequency coils, and running automated High-Speed SMT placement lines in-house, we control crucial insulation clearances (triple-insulated wire) and eliminate intermediate component markups.
Every single power supply unit undergoes an automated multi-stage SOP: Bare-board electrical testing, Ultrasonic housing welding, 100% Hi-Pot dielectric isolation testing, full-load burn-in thermal aging, and final output functional check.
Our library of over 200 field-proven platform schematics enables accelerated prototyping. Sample turnaround for bespoke voltage rails (e.g., 5V, 12V, 24V, 36V, 48V) or custom DC tips requires only 7–10 working days.
Tailored electrical characteristics optimized for harsh commercial, medical, smart home, and industrial environmental requirements.
Requires wide input operating frequencies (47Hz to 63Hz, universal 90V–264V AC input), high surge immunity (3kV–6kV), and heavy-duty flame-retardant enclosures (UL94 V-0 PC/ABS plastic) to withstand vibrational and thermal strain in automated factories.
Medical-grade AC adapters demand strict 2×MOPP (Means of Patient Protection) dielectric isolation, leakage current below 100µA, and compliance with IEC/EN 60601-1 safety benchmarks for patient-adjacent monitoring gear.
Continuous 24/7/365 operation demands low standby power loss (<0.075W) and exceptional MTBF (>100,000 hours under Telcordia SR-332 standards) for set-top boxes, broadband optical modems, and smart speakers.
Seamless market access for North America, European Union, Japan, Korea, Australia, and worldwide retail markets.
A primary bottleneck in global hardware distribution is navigating regional electrical safety, electromagnetic compatibility (EMC), and environmental legislation. Working with an unverified supplier risks customs delays, product recalls, or severe non-compliance penalties. Our switching power supplies carry over 120 active safety and efficiency certificates, enabling immediate market entry into major global trade zones:
Certified against UL 62368-1 standard for Audio/Video and ITE equipment. Compliant with FCC Part 15 Subpart B Class B conducted and radiated emissions limits.
Full CE Marking compliance including Low Voltage Directive (LVD 2014/35/EU), EMC Directive (2014/30/EU), EU ErP Tier 2 efficiency, and UKCA registration for UK distribution.
Specific regional safety approvals including Japan PSE (Circle & Diamond marks under DENAN Law), South Korea KC certification, China CCC, and Australia SAA/RCM approvals.

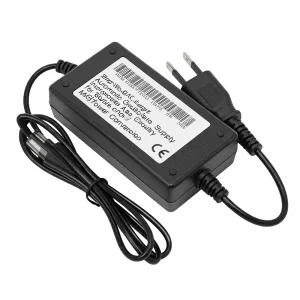

High-reliability desktop switching power adapters, high-temperature wide-range units, dual USB vehicle chargers, and PD Type-C power supplies.
In-depth answers to critical technical, testing, compliance, and supply chain questions raised by global engineering teams.
High ripple voltage on a DC output rail can induce unwanted jitter in digital processing ICs, degrade audio signal-to-noise ratios (SNR), create visual artifacts on display screens, and corrupt high-precision sensor readings. Our switching power supplies incorporate multi-stage common-mode chokes, low-ESR solid aluminum polymer capacitors, and secondary LC filter stages to consistently guarantee ripple noise below 100mV peak-to-peak across full load ranges.
Every unit features four primary protection loops: Over-Voltage Protection (OVP) using secondary optocoupler feedback clamping or zener latch circuits; Over-Current Protection (OCP) via primary current-sense resistor monitoring; Short-Circuit Protection (SCP) with auto-recovery hiccup mode; and Over-Temperature Protection (OTP) that safe-states the driver controller if internal junction temperatures exceed 110°C.
For standard housing tooling with customized DC cables, voltage tweaking, or private brand labeling, our standard MOQ starts at 500 pieces per order. Prototype engineering samples built on qualified reference platforms can be assembled, hi-pot tested, and dispatched within 7 to 10 business days. Fully custom plastic injection enclosures typically require 20 to 30 days for mold tooling creation.
Production validation involves placing statistical sample lots inside environmental thermal test chambers under 100% full rated load conditions for extended duration. Thermal imaging verifies that key component junctions (MOSFETs, transformers, output rectifiers, electrolytic capacitors) remain within rated operating margins without exceeding safety thermal limits.
Yes. All standard power supply series comply with both U.S. DoE Level VI and EU ErP Tier 2 efficiency parameters. They maintain active mode average efficiency above 88%–92% (depending on output power) and consume less than 0.075W under no-load standby conditions, minimizing carbon footprints and thermal waste.
